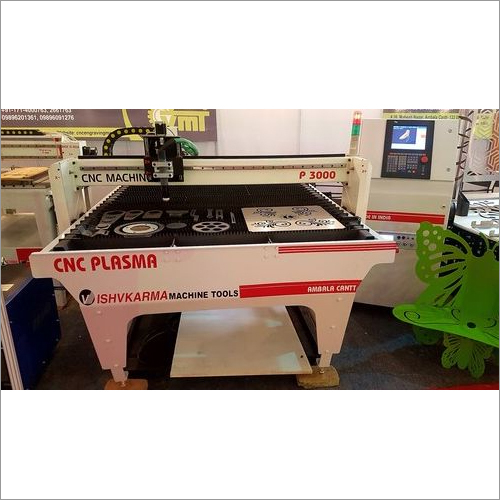

CNC PLASMA MACHINE

CNC PLASMA MACHINE
CNC PLASMA MACHINE
Send Inquiry
Product Code : CNC PLASMA MACHINE
Price And Quantity
  • Price Range
  • 1780000 - 4000000
Product Description

 CNC PLASMA MACHINE

Standard Specificaiton:

Working area: 1240mm*2480mm*180mm
HIWIN Linear guide
Stepping motor/ Servo motor Fuji/Panasonic
Indian Self Make controller with hand wheel/ Adtech Controller
Plasma Generator: USA Thermal Dynamics Cut Master A 120
Torch height controller Adtech
Working voltage: AC 380V 50HZ

Technical Specification:
Travelling size:1260*2500*200mm
Transmission : X/Y rack and pinion, Z ball screw drive
Travelling speed : 25m/min
Working speed : 15 m/min
Max. machining depth : It cut at different size 12mm, 16mm, 20mm
Working voltage : AC380V 50HZ/60HZ
Driving system : Stepper/Servo
Controller : Indian Self Make/Adtech
Plasma generator : USA Thermal Dynamics Cut Master A 120

Features of Cut Master A120
 :
Rated Output : 120 Amps
Output Range : 30120 Amps, 120amps Max., Adjustable
Production Piercing and Cutting Capacity : 5/8” (15mm)
Maximum Piercing and Cutting Capacity : 3/4” (20mm)
Maximum Edge Start : 1½” (40mm)
Power Output : 15.4KW
Duty Cycle : 80%@ 120 Amps, 100%@ 100 Amps
MAX O CV : 260 VDC
Gas Type : Air@ 80 psi (5.5 bar) @6.7 cfm ( 189 lpm)

Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cheque
